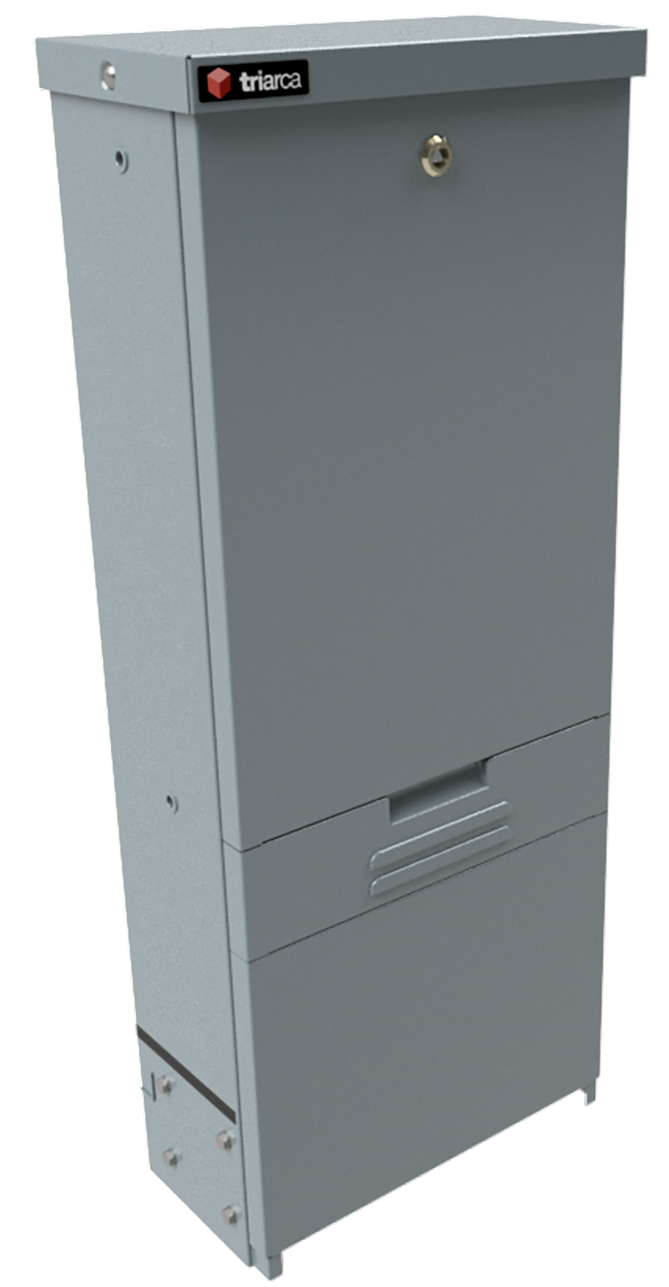

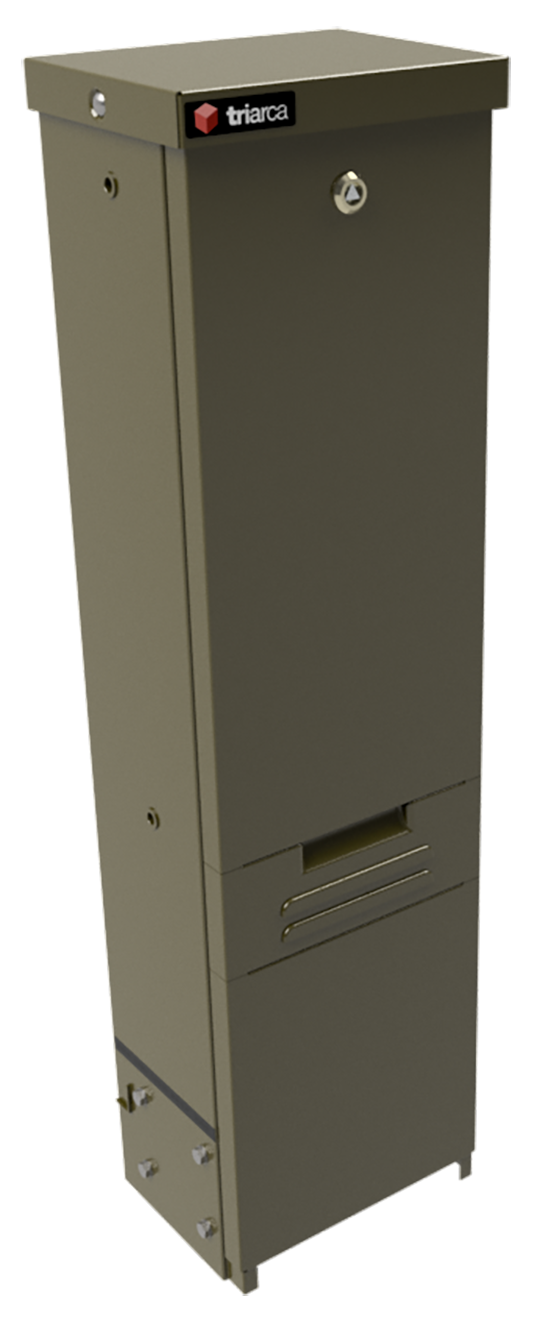

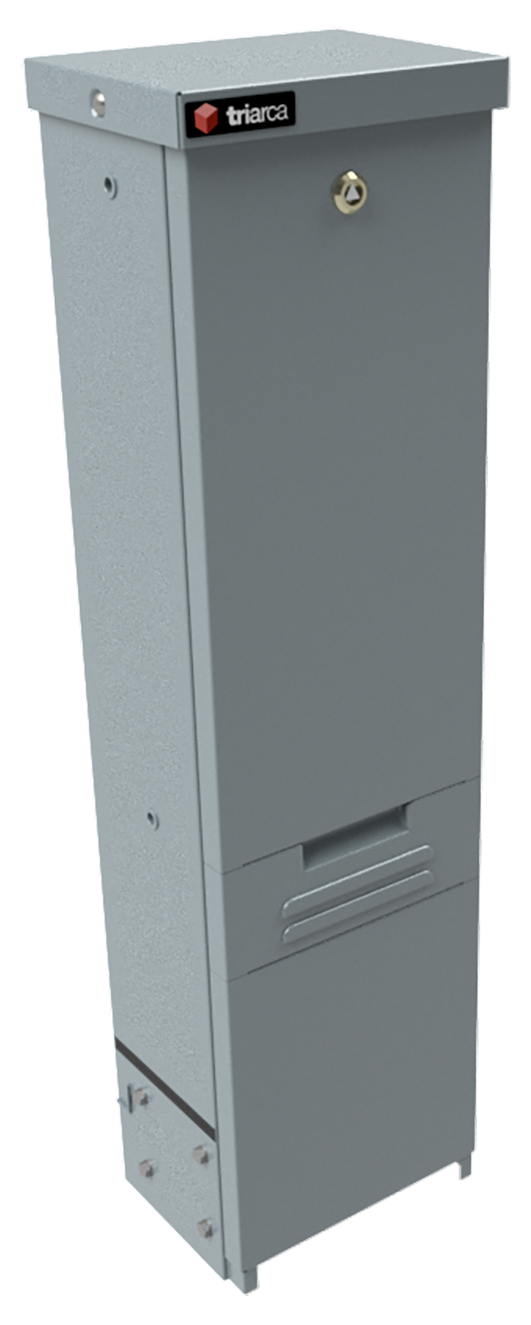

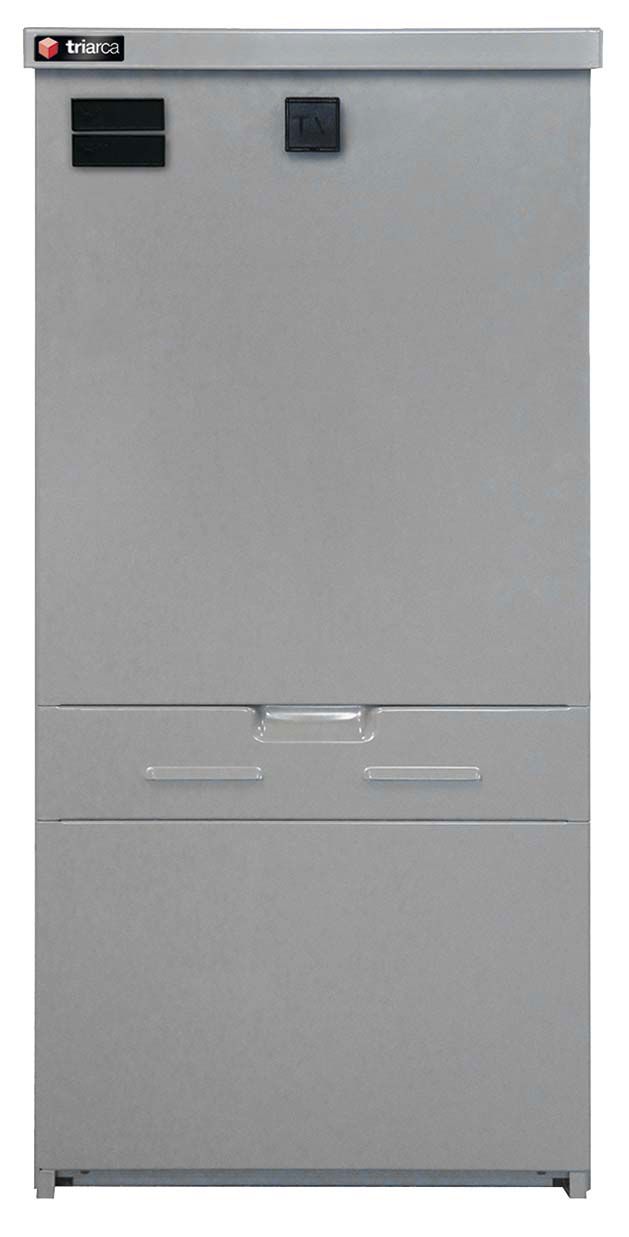

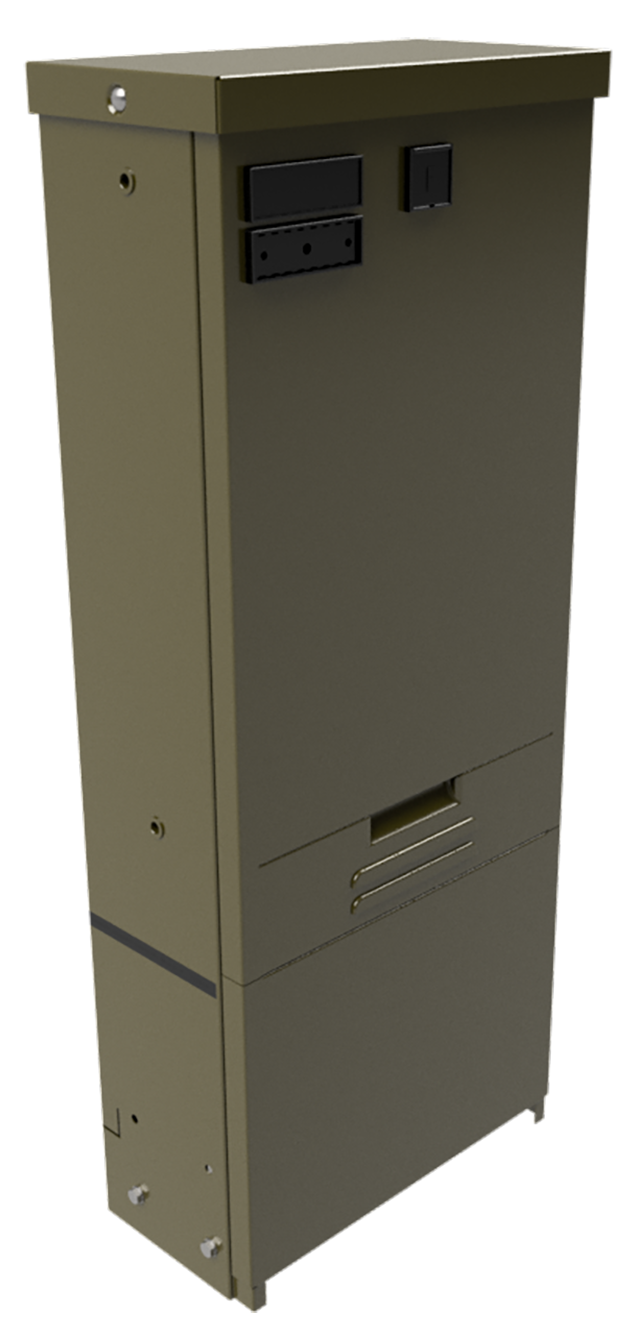

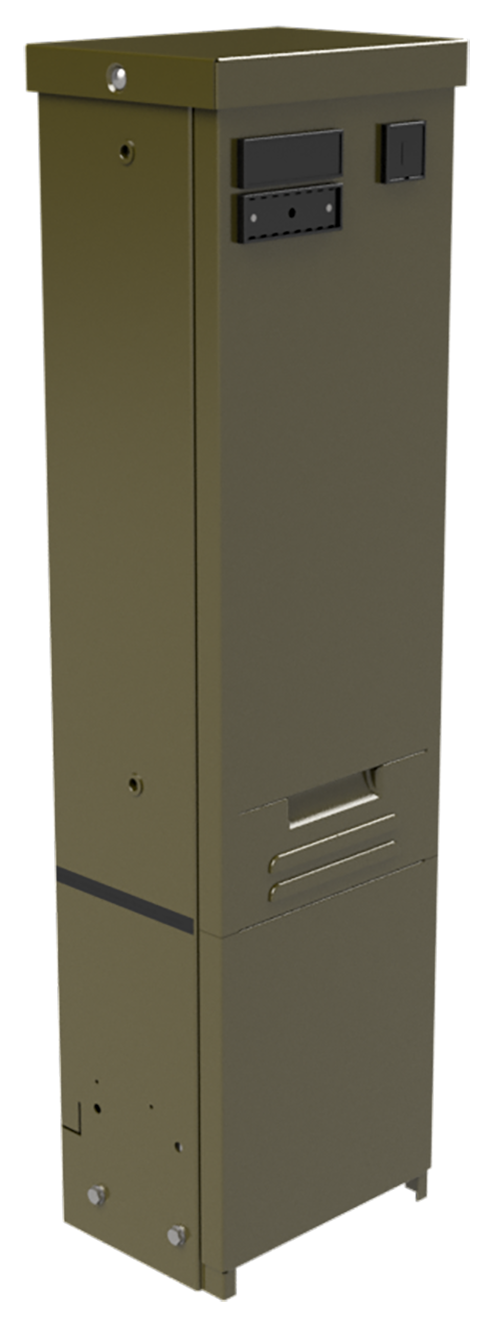

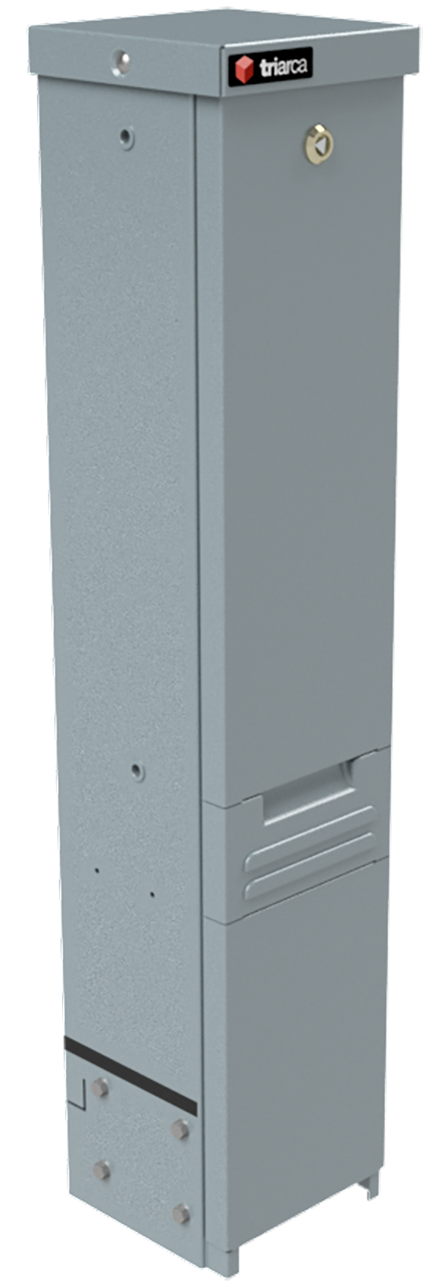

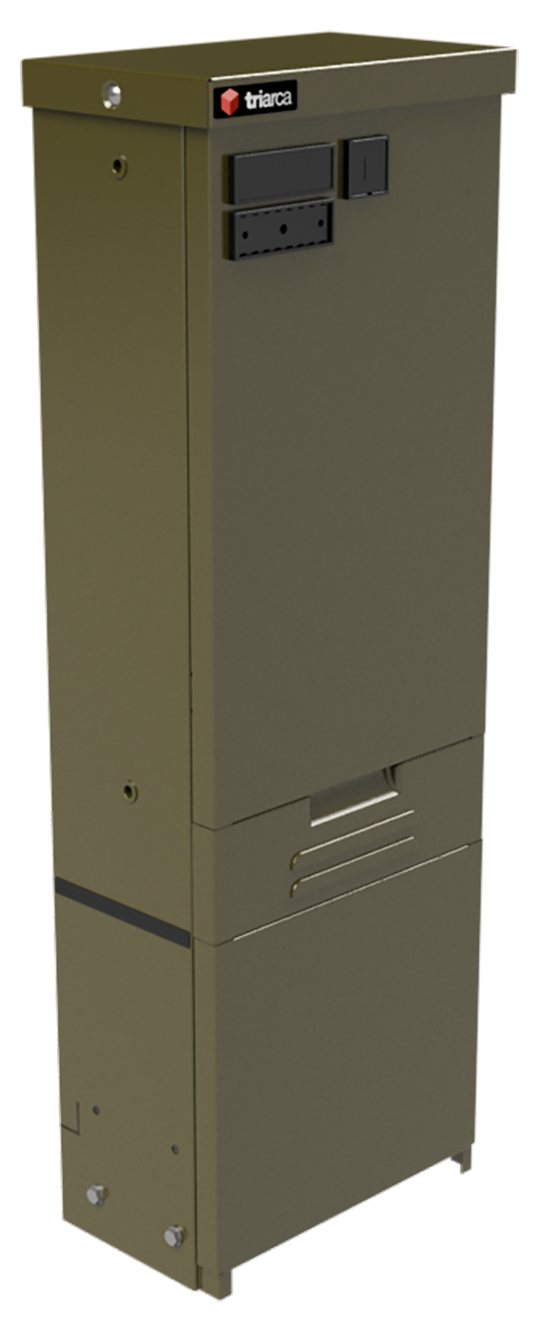

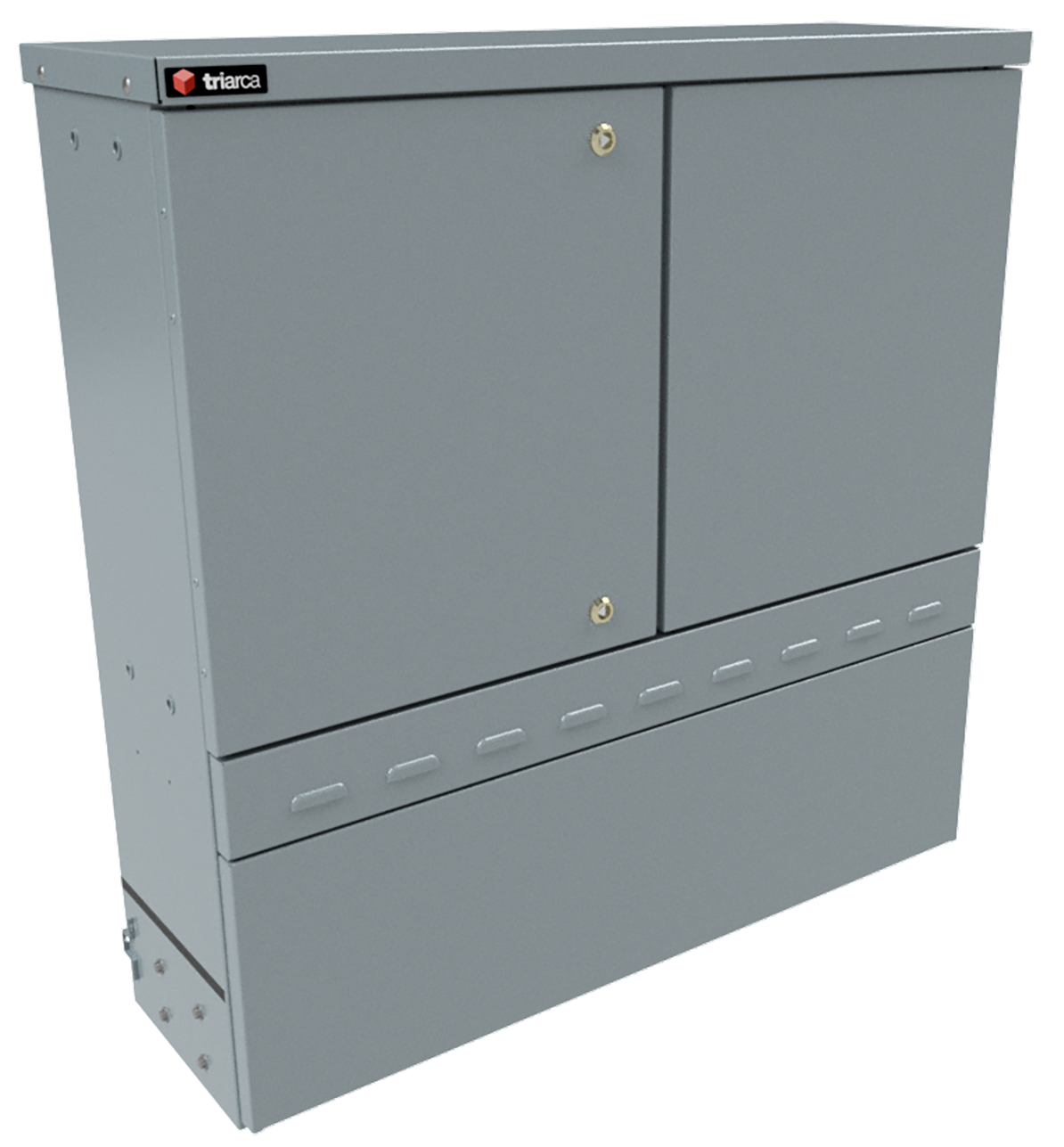

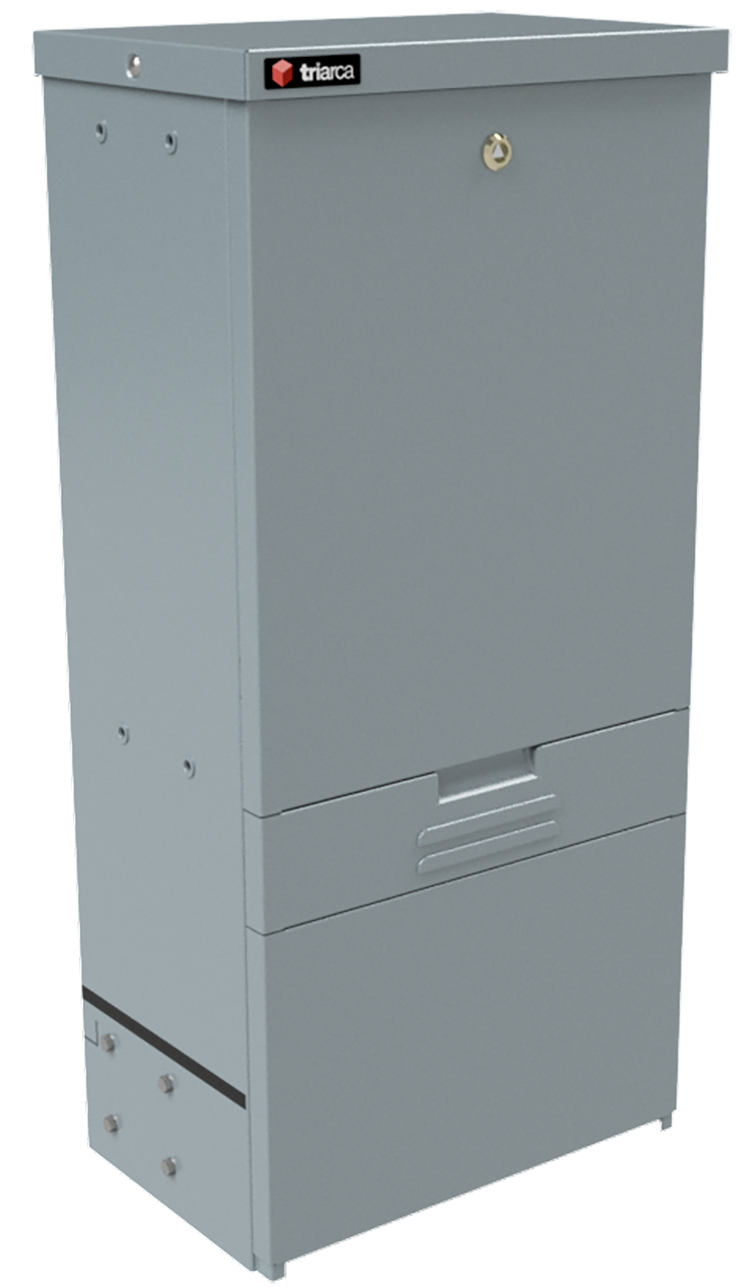

FE
- Class I
- Retrofitable and removable mounting plate
- 1-Point locking system. Triangle lock as standard. Other locks upon request
- 3-piece front door set. Lower door can also be removable during installation
- Integrated and adjustable foundation
- Produced in galvanized polyester coated
Good reasons to choose FE
- Ideal for minor control panels and group boards
- Integrated foundation makes installation faster and more efficient than enclosures with a separate foundation
- In use in Scandinavia for more than 25 years
- Compact solutions - limited space requirements and visibility
- Long service life and minimum maintenance gives low TCO
IP 34D EN 60529
IK10 EN 62262
-50° - +40° Celsius
Build-in moisture reduction
Recyclable steel
FE variants
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
FE
1000x264x198
700x210x171
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
FE
1000x330x198
700x285x171
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
FE
1000x396x198
700x352x171
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
FE
1000x594x198
700x540x171
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
FE
1005x605x300
560x550x280
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
FE
1000x792x300
700x761x171
Options
Colors:
Lock type:
